Product Description

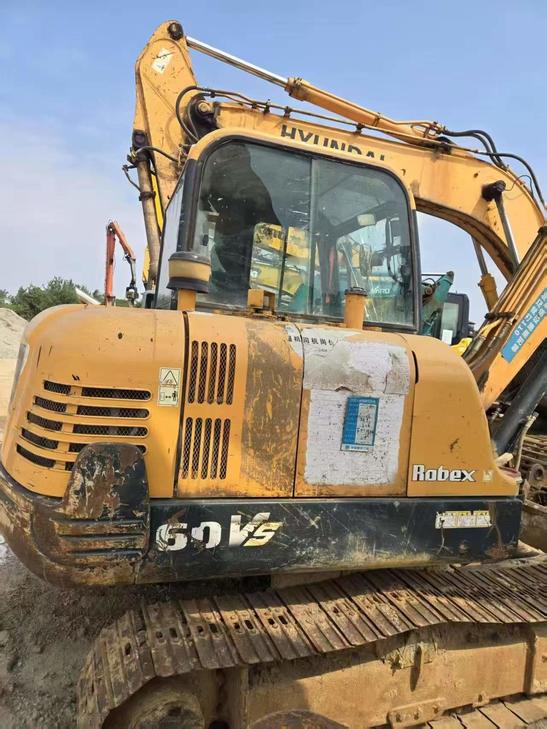

This 2017 Hyundai R 60VS mini excavator offers reliable performance for compact construction and earthmoving applications. With approximately 7 years of service, this machine demonstrates Hyundai's proven engineering in the 6-ton class excavator segment.
Currently located in Fujian, China, this unit is well-suited for contractors requiring maneuverability in confined work areas while maintaining productive digging capabilities. The R 60VS series is recognized for its balance of operating weight and hydraulic performance in urban construction, utility work, and landscaping projects.
- Year of Manufacture: 2017
- Make: Hyundai
- Model: R 60VS
- Location: Fujian Province, China
- Machine Category: Mini Excavator
This used equipment represents an economical entry point for businesses expanding their fleet or seeking backup capacity. Inspection and verification of machine condition recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1143251 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 |
| Rated power (kw/rpm) | 54.3 / 2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 (3.86 ") x 110 (4.33 "). |
| Maximum torque (N.m) | 20.6 / 1800 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.0 / 2.2 |
| Maximum flow of main pump (l/min) | 2 x 55 |
| Traveling Hydraulic Circuit (Mpa) | 220 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 220 |
| Pilot Oil Circuit (MPa) | 30 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 x 50 x 660 (3.1 "x 26.0") |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90×55×850 (3.5 "×33.5") |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110×65×715 (4.3 "×28.1") |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1830 |
| Total track length (mm) | 2530 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1990 |
| Maximum height at minimum turning radius (mm) | 2350 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Maximum excavation radius of stop surface (mm) | 6010 |
| Maximum effective digging depth (mm) | 3420 |
